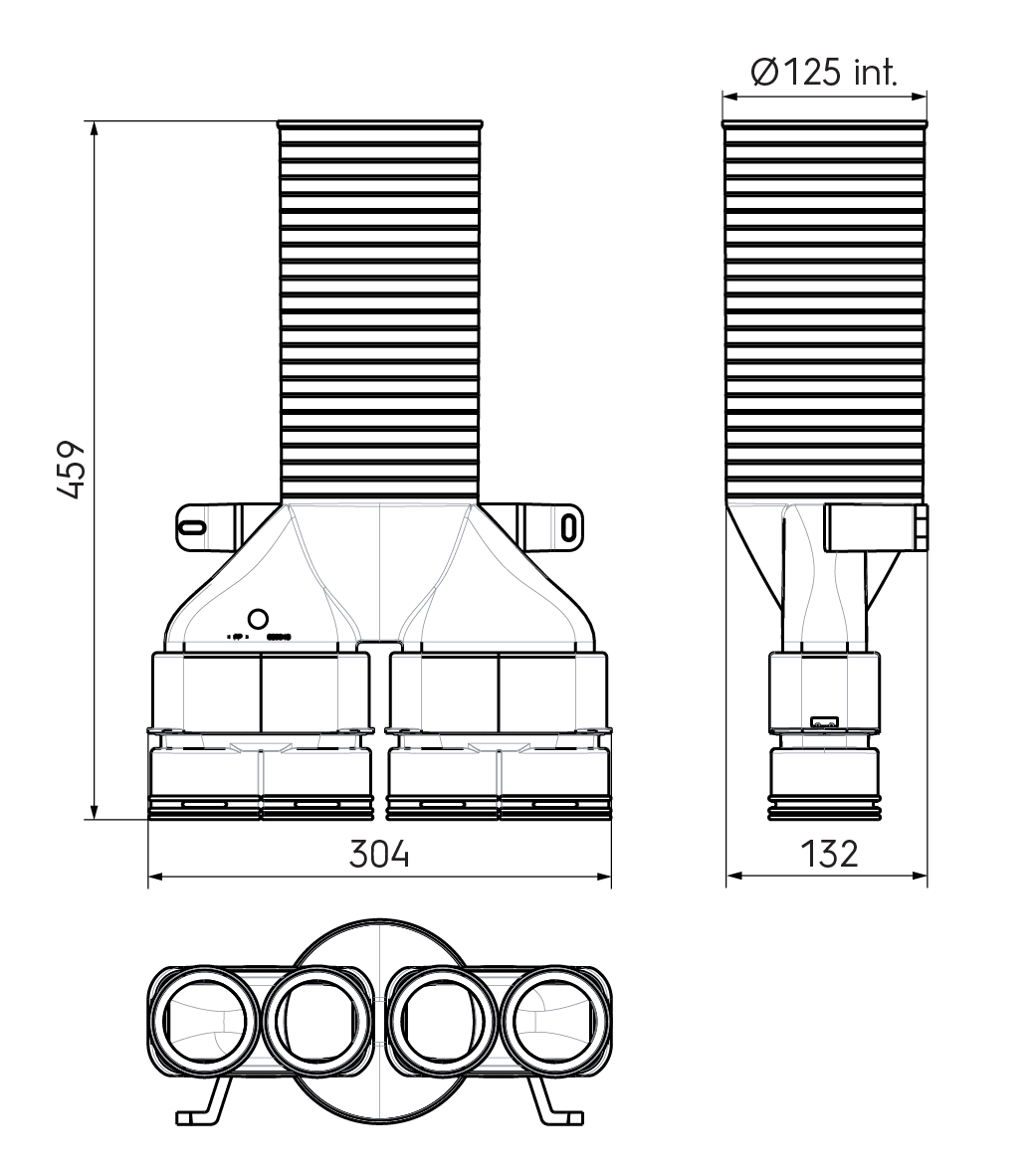

Dimensional drawing – 4x AE23C Valve Adaptor 125mm 180°

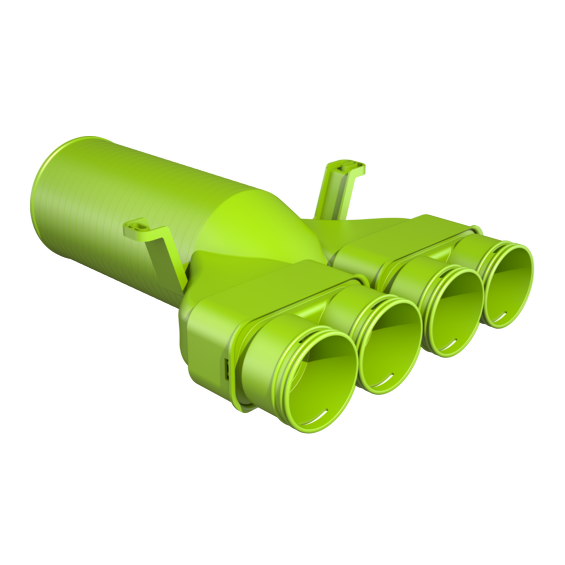

Air Excellent 4x AE23C Valve Adaptor 125mm 180°

Article number: 188176

188.164-AE55sc-ValveAdapter180-4xAE23
Dimensional drawing – 4x AE23C Valve Adaptor 125mm 180°
188.164-AE55sc-ValveAdapter180-4xAE23
Dimensional drawing – 4x AE23C Valve Adaptor 125mm 180°

An AE23C duct accessory. Use an AE23C seal ring and an AE23C click ring to connect the AE23C duct to it.

  • Modular manifolds, which can be used with all 6 duct types
  • Semi-rigid plastic ducts on a roll and airtight mechanical connections, which are extremely easy to install
  • Low system pressure loss due to radial design
  • Airtight (class D/ATC 2 up +/- 2000 Pa) thanks to mechanical connections, which minimises fan energy use and sound production
View all specifications

Detailed information

This item can be used to terminate a duct run inside a habitable or wet room. A valve must be inserted into it.

Specifications

General

Product Name
Air Excellent 4x AE23C Valve Adaptor 125mm 180°
GTIN
8713645217765
Trade name
Air Excellent
Type
Adaptors
Accessories in package
Cover caps

Technical

Comm. Dimension
63 mm
Colour indication
RAL 6038
Shape
Circular
Antimicrobial
Colour
Green
Material
PP
Anti static
Airflow direction
Supply / extract

Dimensions

Length gross
459 mm
Height
132 mm
Width
304 mm
Net weight
0.717 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
508 mm
Packaging / Trade height
178 mm
Number per packaging
1
Gross weight
1.3 kg
Packaging / Trade width
308 mm

Performance

Temperature resistance (min.)
-20 °C
Temperature resistance (max.)
60 °C

Downloads

Installation manual

Installation manual - Air Excellent ductwork

Technical data sheet

Technical data sheet - Air Excellent 4x AE23C Valve Adaptor 125mm 180°

Brochure/folder

Brochure - Air Excellent
