Insulated Roof Terminal 186/180 Black

Article number: 169860

An insulated roof terminal for mechanical ventilation. Requires waterproofing components, which depend upon the roof pitch and covering.

View all specifications
169860-Insulated stack 180 BLK

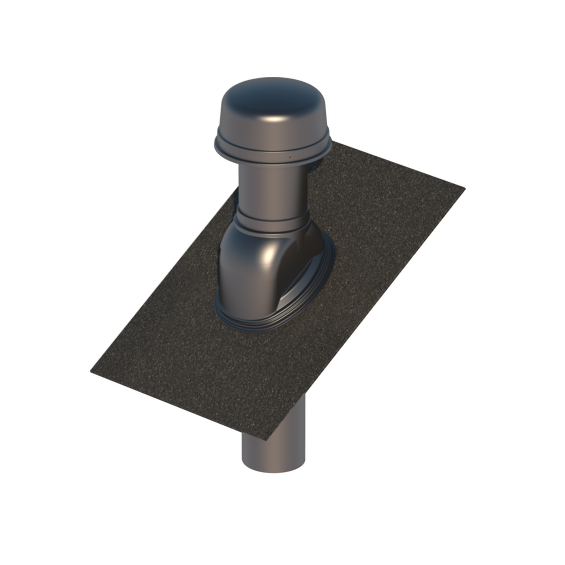

169860-174136-Insulated stack 180 BLK & Rain collar 180 BLK & Flashing tile Ubiflex B3 180 BLK

All media

169860-Insulated stack 180 BLK
169860-174136-Insulated stack 180 BLK & Rain collar 180 BLK & Flashing tile Ubiflex B3 180 BLK
169860-Insulated stack 180 BLK
169860-174136-Insulated stack 180 BLK & Rain collar 180 BLK & Flashing tile Ubiflex B3 180 BLK
169860-Insulated stack 180 BLK
169860-174136-Insulated stack 180 BLK & Rain collar 180 BLK & Flashing tile Ubiflex B3 180 BLK

Specifications

General

Product Name
Insulated Roof Terminal 186/180 Black
GTIN
8713645105208
Type
Roof Terminals
Trade name
Ventub

Technical

Comm. Dimension
180 mm
Insulation material
EPS
Colour
Black

Dimensions

Length gross
1228 mm
Height
341 mm
Width
341 mm
Net weight
2.7 kg

Logistical

Intrastat
39259080
Base unit packaging
Box
Packaging / Trade length
1240 mm
Packaging / Trade height
396 mm
Number per packaging
1
Gross weight
4.6 kg
Packaging / Trade width
396 mm

Performance

CE string
-

Downloads

Technical data sheet

Technical data sheet - Insulated Roof Terminal 180mm
